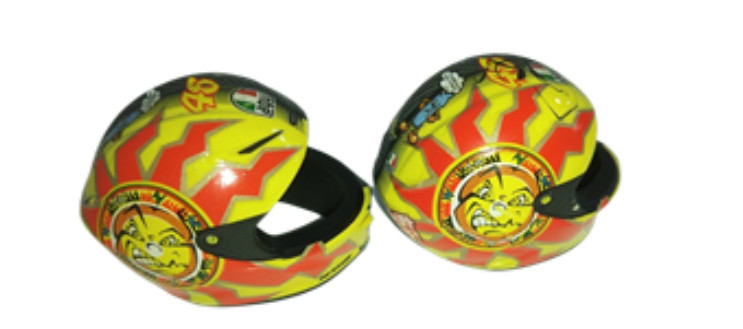

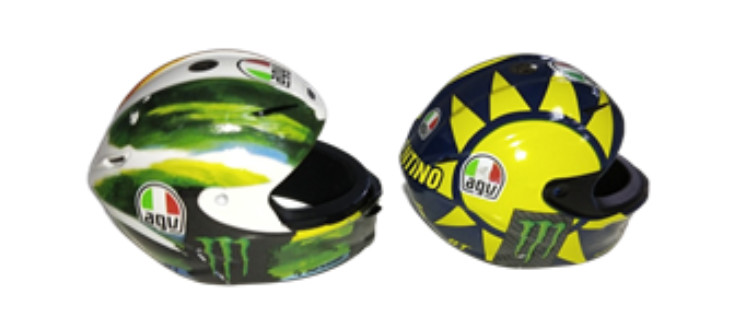

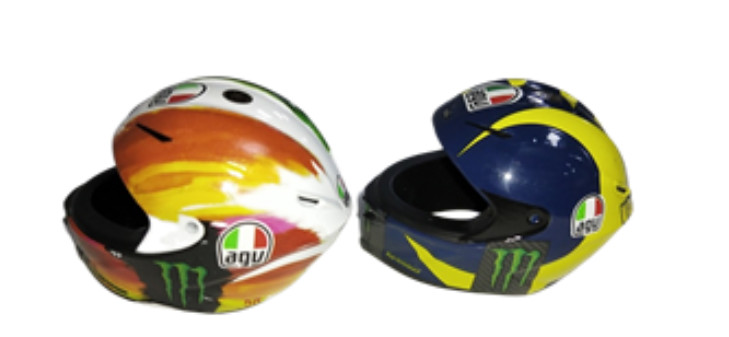

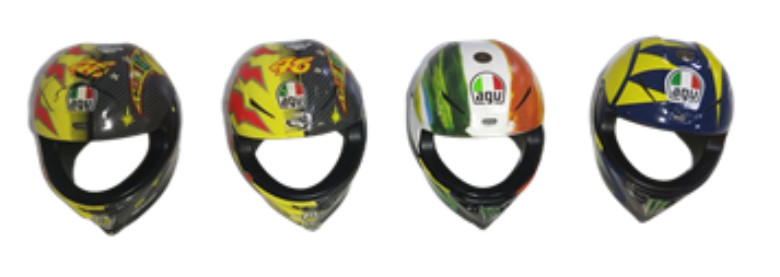

Helmet toy LEGO plastic shell and spray oil, screen printing process parts
Product Description :
| PLASTIC INJECTION PART BASIC INFORMATION | |
| Product Name | High Precision Mould |
| Product Material | ABS, PA, PA66+30GF, PBT, PC, POM, PP, PE, MA,PVC,TPE,TPU etc |
| Surface Requirement | Smooth, Polishing, Painting, SandBlasting, Electroplate, Silk-screen, Laser Etching, Anodizing,Brushing |
| Plastic Part Resin | thermoplastic/Thermosetting |
| Tolerance Request | UP to (±0.005mm) |
| Lifetime | >300 Thousand Times |
| Part Size Range | 5-1000mm,or customized |
| Multi Injection | Single/Double/multi color |
| Design Software | Pro/E,UG,Catia,Woodwork,Moldflow,AutoCad |
| Quality Assurance | Design Control, Steel Hardness Inspection Report, Steel Dimension Control Report, Mold Core and Cavity Dimension Inspection Report |
| PLASTIC INJECTION MOULD BASIC DESCRIPTION | |
| Injection System | Hot /Cold Runner |
| Inserts(cavity and core) | H13, 1.2344, 1.2738, 1.2083, 1.2311, NAK80 or as your request |
| Mold Cavity | 1+1,8+1,4+1,1+1+1+1,etc |
| Gate type | Side gate,Sub gate,Pin point gate,Edge gate etc |
| Ejector System | Stripper plate,Lifter,Push bar,Ejection pin etc |
| Steel for Mould | P20, 718, 8407, NAK80, H13, S136, DIN 1.2738, DIN 1.2344, etc. |
| Steel Standard | FINKL,Assab,DAIDO,LKM,Buderus |
| Cooling | Baffles/Sprin Piple/3D printing water line |
| Lead time of first samples | Around 4weeks |
| Standard Parts/Cylinders | DME/HASCO/PROGRESSIVE/MISUMI/Parker/HP/Merkle |
| Design Capability | DFM,Mould flow analysis,Product optimization, Full 2D & 3D mould design,Reverse engineering,Collaborative design with customer's idea |
| Documents / Reports Provided | Fully drawing,Weekly Processing Report, Steel Dimension report, Processing Report,Sample Dimension Report. |
Advantages:
1. Competitive pricing.
2. Continuous service and support.
3. A diverse pool of experienced skilled workers.
4. Coordination of customized R&D projects.
5. Apply expertise.
6. Quality, reliability and long product life.
7. Mature, perfect, excellent and simple design.
Engineering capabilities include:
1. Part design.
2. Develop products.
3. Prototype design, production and assembly.
4. Use reputable design software for all design work.
5. Mold design.
